1923 Ruston No. 6 Steam Shovel

Boiler, Boom and Dipper
Steam Shovel Boiler, boom and dipper Steam Shovel Boiler, boom and dipper
Unloading the main body.
Ruston Steam Shovel

Ruston No. 6 Navvy, Steam Shovel. Serial number 818. This machine was despatched to Ruston's depot in Melbourne on the 23rd October 1923.

This machine had spent a long time on the side of a road before being rescued for preservation. Most of the brass work (fittings and bearings) and most other easily removed components have gone missing, but what remains are mostly in usable condition.



1927 Ruston No. 6 Steam Shovel

Boiler, Track Frame and Top deck ready to travel to Victoria
Parts on a trailer
Bucket
Bucket
Gear, Crankshaft and Bucket Pulley
Gear, Crank and Pulley
Winch Drum
Winch Drum
Tracks and Dipper Arms
Tracks and Dipper arms
44 Gallon Drums.
3 drums contains track plates,
the rest contain brass work,
a small weir boiler feed pump,
and other parts.
44 Gallon Drums of parts

Ruston No. 6 Steam Shovel. This unit was despatched to Sydney on the 22nd of January 1927. Serial number 1128.

It was one of three No. 6 shovels that were used at the Mount Morgan mine, and it was later use at a gravel put near Rockhampton before being rescued for preservation. The machine is basically complete but a lot of the components are that badly rusted that they would only serve as patterns.


Ruston Bucyrus 10RB dragline

10RB

Ruston Bucyrus 19RB Crane, Dragline, Pile Driver

19RB Crane/Dragline, we also got some piling equipment with this one
Ruston 19RB

Ruston Bucyrus 22RB Shovel

Ruston Bucyrus 22RB face shovel with Ruston Hornsby 4YE water cooled diesel engine
22RB shovel

Ruston Bucyrus 22RB Shovel

Ruston Bucyrus 22RB face shovel. Fitted with the Ruston Hornsby 6YDA air cooled diesel engine.
Ruston Bucyrus 22RB Ruston Bucyrus 22RB
Ruston Bucyrus 22RB

Komatsu Bucyrus 22KB Shovel

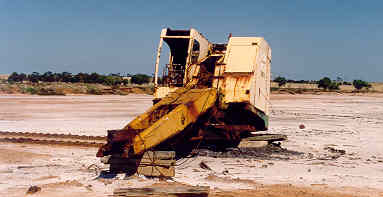

Derelict Komatsu built 22KB face shovel. Note the tracks laying beside the machine
Derilict 22KB
After getting the engine running and a large length of cable and a number of pulley blocks it was able to winch the machine to solid ground under its own power, skidding along on the track frame.
22KB moving

Bucyrus Erie 15B

This unit is fitted with a 4 cylinder Gardner Engine, it also has a home made cabin.
15B

Harman built 15B

Harman built 15B back actor (backhoe)
15B Manfactuted By Harman on the counter weight
Harman 15B Counter Weight
15 ton Harman 15B, dragline boom, pile driving leader and hammer, spare buckets, etc. being transported
Being transported

Harman in Melbourne built the Bucyrus Erie 15B machines under licence from Ruston Bucyrus


15 Ton Harman Dragline

15 ton Harman

Harman's own design dragline. Fitted with a 4 cylinder petrol start International Harvester diesel engine


Harman KL225 Face Shovel

Harman KL225 shovel at clearing sale
Harman KL225
KL225 being transported.
KL225 in truck

This unit has a GM 3-71 Diesel engine and torque converter. It also has air controls. It weighs about 25 tons.



Kockum KL250 draglines

Kockum KL250 dragline number 79A-06
KL250
Landsverk L-77 (Kockum KL250) draglines number L-77-53A-09
Landsverk Kockum KL250

These two machines were some of the last built by Harman after Kockum took over. They are fitted with Scania diesel engines, and have full air controls.


Jaques J15 dragline

Jaques J15 dragline
J15 dragline J15 on transport

Small 10 ton Jaques dragline, which was based on the Ruston Bucyrus 10RB. This unit has been repowered with a GM 2-71 diesel engine. These machines normally had Lister JP3, or International Diesel Engines.


Priestman Cub dragline

Preistman Cub and 1 ton drop ball squashing old car bodies at the Geelong Vintage Rally
Preistman Cub & Drop ball Preistman Cub & drop ball impact

This Preistman Cub Dragline/Crane is fitted with a 3 cylinder Ruston Hornsby air cooled diesel engine (which is made in India).


Lima 802 crane

Lima 802 Dragline/Crane
Lima 802

Built in 1949, original sold to Tasmania Hydro as a face shovel. This machine was last used as a crane for pile driving work. Weighs about 67 tons, powered by a GM 6-71 diesel engine. Has full air controls. Although not fitted now, this unit originally had a Kohler 1.5kW type EH 110 Volt generating set mounted on the front right side of the cab to run the lights


Lime 802 on tansport
Lima 802 on transport
Lima 802 being unloaded
Lima 802 unloading


O&K Face Shovel

O&K RH9 loading gravel
Digging Gravel loading gravel

O&K RH9 hydraulic face shovel. Year 1976. Weighs about 25 tons


Gradall Excavator

Gradall Truck mounted excavator

These units have a telescopic boom, and the cradle the book is mounted in has a limited amount of roll which enable the bucket to be tilted. Note that this machine is also fitted with a long reach extension on the end of the boom.


Britstand Trailing Ripper

Britstand Ripper, a light trailing ripper, uses a rope attached to engage the drive operated from the rotating wheels to raise the ripper, and another rope to pull the leaver to lower the rippers.
Britstand Ripper

A.B. Campbell & Sons Ripper

Campbell Ripper
The name is welded onto the chassis
Campbell I.S.A.S. Ripper No. 3-231
Built by A.B. Campbell & Sons
Gloucester N.S.W.
Serial 403 C.
name welded onto chassis

This unit has had the original steel wheels removed and replaced with truck tyres. It has had more ripper tyne slots added so that extra light rippers tynes cab be added, probably for use as a stick rake. The cables are attached to the Power Control Unit (winch) on the Bulldozer, and are used to raise the ripper

A.B. Cambell made this units in the 1950s, and ceased trading in the 1970s. I spoke to Andy Campbell who used to own the factory. He said that they had a works party every time another hundred rippers were made, and he said "we had a few of them".

This unit is a model 403 which is a 4 ton 3 tyne ripper

If any one has any information/literature on this company, I would be interested, please contact Stephen Larcombe at Plough Book Sales.


Massey Harris 102 Senior Crane

The Massey Harris 102 Senior tractor that this crane was based on was built in about 1943
Massey Harris Crane

Wabco Crane

Wabco crane, ready for transport
Wabco crane loaded ready for transport
This crane is suppose to be the old Yard Crane from Wabco's factory in Sydney. It is a Letournea Westinghouse scraper front end attached to an A-frame trailor and boom assembly. Powered by a GM 3-71 two-stroke diesel engine.

McDonald HF Roller

This was McDonalds first hydraulic driven three point roller. It was supplied to Geelong West City Council in 1953. It weighed 4 to 5 ton deadweight, and powered by a Holden car engine. It is the only one of this type made.

The holden engine (power unit) was connected by a short splined shaft to two Raymond Hydraulics, hydraulic pumps. The hydraulic pumps were built in a "twin pack" form. One pump drove the hydraulic motor for the left wheel, and the other pump drove the hydraulic motor on the right wheel

Raymond Hydraulics were based in Oakleigh, Melbourne, and designed and built a range of vane type hydraulic pumps/motors sets for use as variable speed drives.


Cross section view of the Raymond Hydraulics, Hydraulic Motor, sowing speed/direction control valve, and pressure control spring.
Note: if the pump is overloaded the pressure control spring will bring the pump back to neutral.
Hydraulic pump showing control valves
Close up view of the rotor and spring loaded swinging hinged vanes. Note the ring around the rotor, its position, left or right of centre will alter the direction of oil flow, and quantity of oil flow.
Close up of pump
Hydraulic Motor showing the swinging, hinged blades and direction of oil flow. Note that these motors can also run in reverse, albiet with slightly less effeciency.
Hydraulic Motor
Cover page of the Rayment Hydraulics specification sheet/instructions sheet.
instructions cover


Jaques 16x10 stone crusher

Jaques Stone crusher set up with Perkins P3/torque convert power pack.
Jaques stone crusher

Jaques made quite a few of these single toggle crushers. The size (16x10) is the feed opening at the top of the jaws. The crusher will comfortable handle 10 inch rocks, and produce anything from 3" to 1" minus crushed rock, depending on the setting.

The wheels are from the original crusher, but all the wooden chassis was beyond use, and has been replaced with steel.

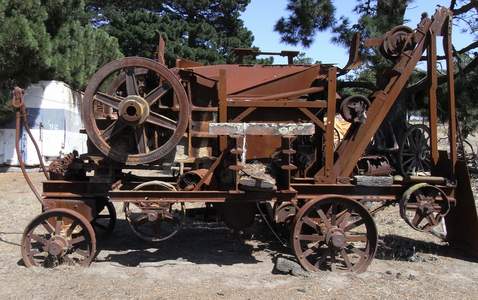

Ruwolt 16x9½ stone crusher

Ruwolt Double Toggle crusher
Ruwolt stone crusher

Ruwolt made stone crushers in Melboune, and unlike Jaques, they made double toggle crushers. In the Jaques single toggle crusher, the movable crusher jaw was suspened from the main drive cam shaft. The double toggle crusher had the Jaw suspened from its own shaft, the drive/cam shaft was mounted behind it and operated two toggle plates to drive the jaw.

Apparently the motion of a jaw on a double toggle crusher makes it more suitable for use with harder rocks like quartz.

Note that this crusher has a small feed shute and grizzly, and a drive arrangement to operate a bucket belt to remove crushed rock.



Malcolm Moore Fordson E27N based Mechanical grader

Malcolm Moore mechanical grader built in a Fordson 1945 E27N Tractor
Malcolm Moree Grader

This grader was originaly owned by Bannockburn Shire Council, and then later Newtown-Chilwell Shire before passing into private ownership. The movement of the blade and scarifier are achieved by the use of long screwthreads operated from a control gear box driven from the tractor belt pulley.



Fowler Marhsall crawler (with wide track plates)

Cheetham Salt has quite a large number of these Fowler Marshall crawlers, and fitted some of them with these wide plates.
Fowler Marshall with wide tracks

Fowler Marshall logging winch

Parts of a logging winch to fit onto a Fowler Marhsall crawler.
Fowler Marshall Winch

This logging winch is driven by a chain from a sprocket fitted onto the side of the gearbox in place of PTO. This winch is not very complete, and has had a hard life.

Note: the chain gaurd does not belong with this winch.



Britstand Logging Winch for Oliver DDH dozer

Britstand logging winch to suit an Oliver DDH dozer. Note the right picture is a chart that is attached to the side of the winch, it gives the volume of the log, from its dimensions.
Britstand Logging Winch Name Plate and log chart on Britstand Winch

This is a logging winch for an Oliver DDH crawler tractor, it appears to be brand new, with no damage or scratches, even the brass plate on the side is scratch free.

It has however, spent too much time sitting in dirt, and is a little rusty on the face that bolts on to the tractor, and is also missing the drive shaft that goes inside the gearbox, the mounting arms that go either side of the gearbox, and the control levers.



IHC TD18A dozer

International Harvester TD18A dozer. Fitted with a 6 cylinder petrol start diesel engine. This one has a distributor instead of a magneto for the petrol start system.
IHC TD18A dozer

Matilda tank converted to a bulldozer

World War II era, ex Australian Army Matilda Tank, converted to a Bulldozer.
Matilda Tank converted to a Bulldozer

This Matilda tank has had many significant modifications when it was converted to a dozer.

The modifications include:



Vickers Bulldozers

Vickers Vigor torque converter dozer with hydraulic blade, and some parts, on a 20 foot container base being transported from overseas (well over Bass Straight, from Tasmania).
Vickers Vigor on container base Vickers carried by forklift
Vickers VR180 with cable blade working cleaning out a water hole. Note the old Allis Chalmers HD11B in the background
VR180 in water hole VR180 in water hole
Vickers Vigor, direct drive model (left), and wreck on the right
Four Vickers Dozers
Vickers Vigor
Vickers VR180 (right), originally fitted with rear PCU and cable running along the side of the dozer to the front. The previous owner started fitting a front mounted PCU. Also vickers wreck on the right
Vickers VR180 with front PCU

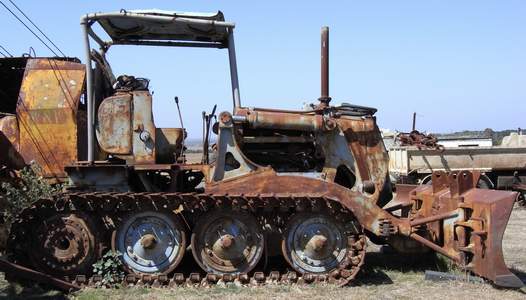

Vickers VR180 fitted with a hydraulic blade
Vickers VR180 hydraulic blade


Letourneau Westinghouse LW30 (LW18) dump truck

This is one of the very first LW30 dump truck made by LeTourneau Westinghouse in Sydney. The model was later renamed LW18, 18 ton being the carrying capacity, instead of the gross weight of 30 ton. These trucks were fitted with a GM 6-71 diesel engine and direct drive 5 speed gear box. These dumpers had two 2-stage bidirectional hydraulic rams to raise the dumper body and pull it back down after it goes over centre.
LW18 dump truck

Wabco LW20 dump truck

A later version of the LW18 dump truck, the same basic layout is used, but this one is fitted with a Road Ranger gearbox and a more modern shaped dumper body. The dumper hoist rams on this model were similar to the LW18, except that only the first stage of the rams were bidirectional.
Wabco Dump Truck

Field Marshall Series 3

Series 3 Field Marhall, fitted with steel wheels, needs a lot of repairs
Field Marshall Series 3

HSCS

HSCS G35 as found in a Condobolin scrap yard.
HSCS G35 in srcap yard

This tractor had a few problems, which included:

The tractor is now in operating order


Another G35. This neglected tractor is suppose to be in very good order. I was told that the agent was not able to sell this tractor when new, and it was only used as a demonstration tractor. This is probably believable as it still has what appears to be original paint on the top of the exhaust.
Another G35
R30-35, these were the first model of HSCS to come to Australia after the war. They were later followed by the G35. Both models had what appears to be the same block, gearbox and differential layout. The G30-35 had different panelling, 6 studs instead of (4 studs like the G35) to hold the head with, they had a water pump (unlike the G35 which relied on thermo-syphon), and they had one bank of radiator panels like the Lanz Bulldog, instead of the centre conventional radiator like the G35.
HSCS R30 35
Another R30-35 being winched onto the truck. Apart from the missing front axle, this machine is otherwise complete, it even cam with the original blow lamp.
Another R30 35


Lanz N model, 1949

This Lanz Bulldog N Model was built in 1949. It has been fitted with a Lanz 6 volt lighting system by the Lanz service man in the mid 1960s. Seen here with a load of wood on a Malcolm Moore tipping trailer. The trailer users a hand winch and cables threaded through the front A-frame to tip.
N Model Lanz with trailer

Massey Harris 101 Junior

Massey Harris 101 Junior Tractor
Massey 101 Junior

Muir Hill 161

Two Muir Hill 161 tractors being transported
Two Muir Hill 161 tractors

Muir-Hill started building machines that were converted from Fordson Tractors in the 1920's

By the 1970's Muir Hill were building tractors like these.

Fitted with a Perkins V8.510 diesel engine, 185 horse power and a Road Ranger RT.610 close ratio 10 speed gear box, giving speeds between 2.3 and 20.6 miles per hour.

Muir-Hill built their own transfer case and axles (of double reduction planetary types). They also built the chassis, cab, etc.

It only steers on the front axle, but has surprisingly good steering lock, 33 feet turning circle full lock, and 20 feet turning circle with brake assistance.

Weighs 5,443 kg without extra ballast, and 10,886 kg when fully ballasted (using larger tyres sizes).



Nasco Gas Producer

Nasco Charcoal Gas Producer fuel plant used during WWII to power a Ford truck. When this unit was collected, it was still sitting where it was taken off the running board of the truck after the war and still half full of charcoal. Unfortunately it is somewhat rusted out.
Nasco Charcoal Gas Producer

Dunlite 750 Watt wind light

Dunlite windlight set up for indoor display
Dunlight wind light on display

Manufactured by Dunlite in South Australia between 1937 and 1967.

Out of the large range of windlights manufactured by Dunlite, this is the only one that has 4 blades.

This wind generator was used to charge batteries for a home lighting plant.

It is normally mounted on a 40 foot high Southern Cross farm pumping windmill type tower.

32 Volts DC output, 750 Watt capacity

There is a small regulator used to control the charging of the batteries, the rate of charging is controlled manually by adjusting the position of the tail. In light winds, the tail should be set to direct the blades directly into the wind, and in heavier winds, the tail is adjusted to pull the blades slightly out of the wind, and thus slowing the speed, and hence charging rate.



Ronaldson Tippett 35 hp diesel engine

Ronaldson Tippett 35 hp diesel engine. Based on a Campbell Gas Engine. These pictures shows the dismantled engine shed and rescure of the engine from the Murray River bank near Moama. The engine is now operating, and on display at the Geelong Show Grounds
Engine in original shed Ready to go home

Ruston Hornsby 3VCB diesel engine

Ruston Hornsby 3 Cylinder diesel industrial engine.
Engine being unloaded from truck
The makers plate on this engine indicates that it was made under licence from Ruston Hornsby by the Maribynong Ordance Factory
makers plate


Ruston Hornsby 6VCB diesel engine

Showing the original location of the engine, and the door that it was squeazed through after jack hammering the concrete mounting block away, lifting the false floor, and removing some of the oilers above the rocker covers.
Engine room from outside
This petrol engine driven air compressor and air tank are used to start the engine with.
Aircompressor and air supply for starting

Another picture of the engine in its original locations. The engine on its own, without the flywheel weighs 7.1 ton.
engine in original locations
Looking towards the door that the engine was removed through (it does not look that big from this angle
another picture of the engine
Engine ready to be transported
Engine ready for transport


Kelvin K4 marine engine

Kelvin Marine engine. 4 Cylinder diesel with marine reversing gearbox. Made on the early 1950's
Kelvin Marine Engine

Amplion engine

Amplion Model I Engine, an Australian copy of a Briggs and Stratton
Amplion model I Engine

Johnson Chore Horse Generating sets

Jonson Chore Horse Generating set with a protective frame
Side view of Johnson Generator with frame Top view of Johson Generator with frame
Another variation of the Johnson generating set.
Another Johnson Generating set

These little generators were based on the same engine that was sold as a Cooper RV or RVE engine. The engines were either started with a rope, or by pressing a button, and using the generator as a starter motor.

Specifications



Sachs Aircooled Wankel Engine

Model KM37 with a recoil starter, the pump has been removed.
Model KM37 with recoil starter and pump removed
Model KM48 with a rope starter, complete with water pump.
Model KM48 with rope starter, complete

These Sachs air-cooled wankel engines were sold by Finsbury as water pump engines, with direct coupled water pumps.

These engines were 4-stroke engines, but still required oil to be mixted with the petrol, like a 2-stroke engine. This was a result of difficulty in cooling the rotating piston in the rotary engine, which was easy enough with water cooled engines, but became a problem with air cooled engines. The answer was to cool the piston with the fuel before it entered the cumbustion chamber.



Ingersoll Rand Spot-Air Model 3R-36 Air Compressor

Ingersoll Rand Spot-Air air compressor
Spot Air Model 3R-36 Side view Spot Air Model 3R-36 top view

Specifications

These compact air compressors built built by Ingersoll Rand in the 1960s.

They were similar in arrangement to a radial aircraft engine laying on its back. But with 6 cylinders, alternating between compressor cylinder and petrol engine cylinder.

They were popular as a portable air compressor, especially with the railways.

There is suppose to be a light pipe frame with a wheel burrow wheel, and handles that the compressor pins onto for on-site transport. Does any one know where one of these frames might be?

Starting was by means of a rope starter on the side.



Southern Cross Air Compressor

Southern Cross air compressor and transporter
Southern Cross Compressor side view SSouthern Cross Compressor front view

Southern Cross air compressor
Southern Cross Compressor internal view

Specifications



Pump Jack

Rocking beam type pump jack
rocking beam pump jack rocking beam pump jack

Not sure what make this beam pump jack is, it could be an Alston. Some of the components do not look like they were original, and it has some evidence of modifications. The counterbalance weight should hang from the left end of the beam.



Industrial locomotive

Cheetham Salt made these small locos to haul side tipping skips along temporary rails through the salt pans during salt harvest.
This photos shows the locomotive with a cabin fitted.
Loco with cabin
This shows the locomotive without the cab. The locomotive was powered by a Ford Prefect car engine, with the car gear box, and then a right angle drive reversing gear box that drove the back axle by a chain. The back axle drove the front axle by another chain.
Loco at the salt works

The locomotive doing a test run
Loco doing a test run another test run picture

Dake Square Piston Engine and winch

Dake Square Piston Engine
Dake Square piston engine Dake Square piston engine
Dake Square Piston Engines Parts List
Dake Parts List

The engine would have a very low efficiency, with some amount of internal leakage around the sides of the piston, but it is compact and easy to control.

These engines have been operated with steam and compressed air, and used to drive small winches, chainblocks, pumps, and even the power steering on large traction engines.


Buffalo Pitts Traction Engine

Single cylinder 15 hp Buffalo Pitts traction engine
Buffalo Pitts

Home   |   Contents Page (Catalogue)   |   What's New   |   Links   |   Information Pages   |   Miscellaneous Equipment   |   Order Form

Plough Book Sales, P.O. Box 14, Belmont, Vic. 3216, Australia
Phone: 03 52661262 (International +61 3 52661262)
FAX: 03 52662180 (International +61 3 52662180)
E-mail: stephen@ploughbooksales.com.au
© 2010, Plough Book Sales
